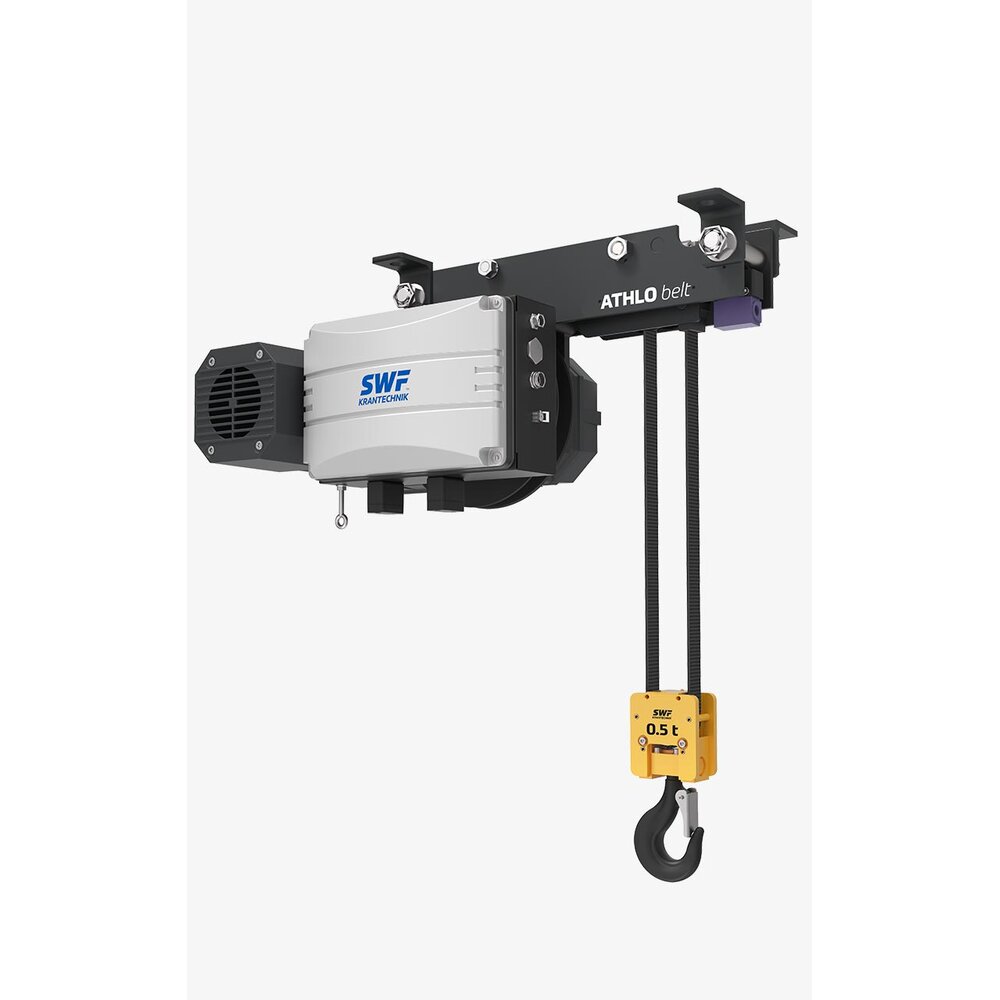

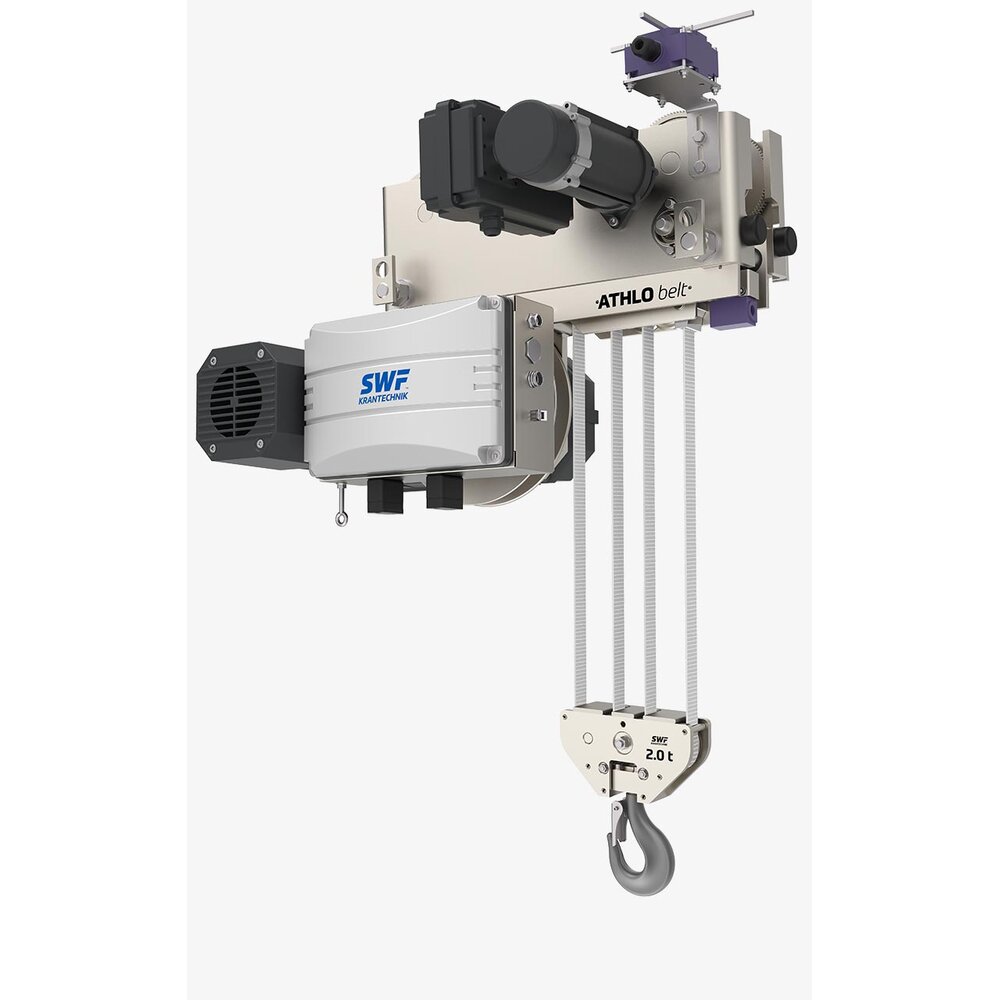

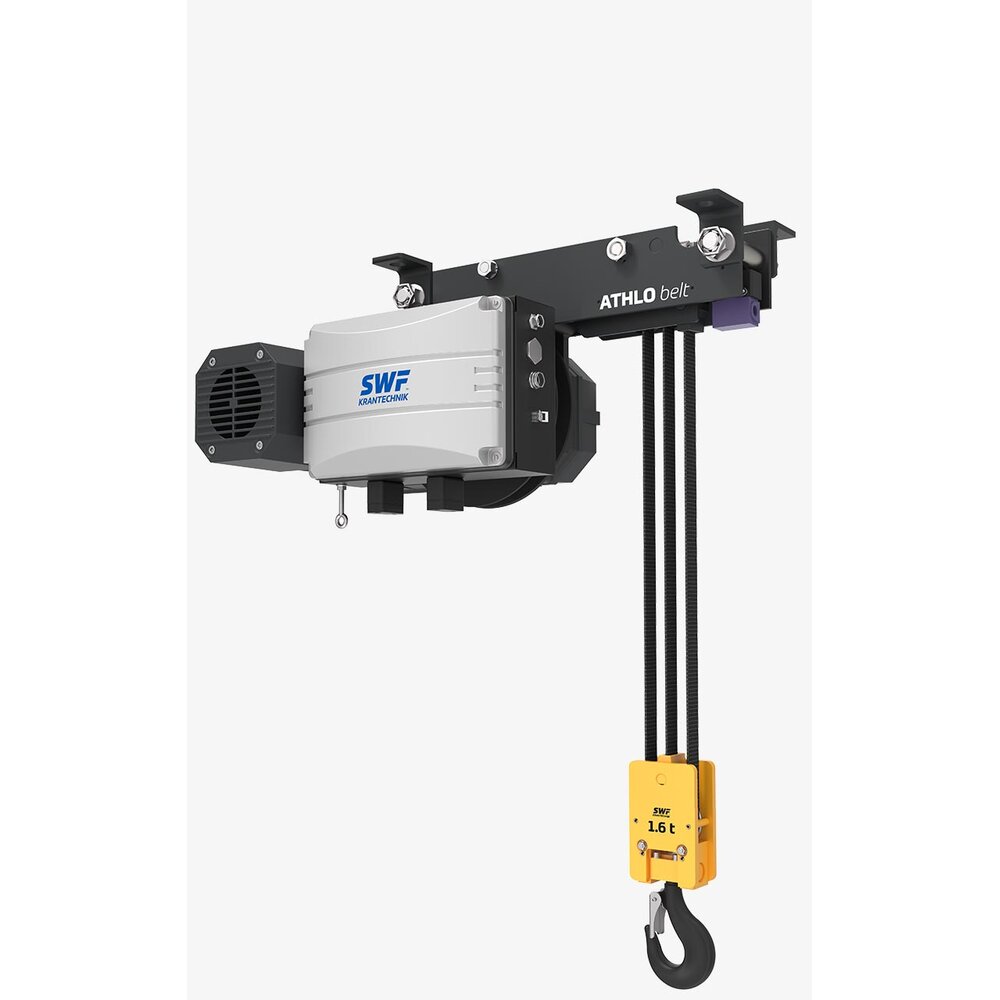

Belt Hoist ATHLO belt presents its advantages wherever cleanliness and safety are important. It covers a wide load range from 500 to currently 2,000 kg.
The numerous series features enable reliable and always safe operation. ATHLO belt can also be optimally adapted to individual requirements.
ATHLO belt is designed for the food sector, the chemical/pharmaceutical industry and for all comparable industries.
Lifting height 4.5 m up to 9 m.
Advantage:
- Push or motor trolley available
- Reliable overload protection
- Small C hoist dimension = optimal use of space
- Robust construction (steel; optional with stainless steel components)
- Roven contactor control (48V)
- Frequency inverter for stepless lifting and lowering
- Comfortable 2-step hoisting limit switch
- Protected installation in the casing
- Upper and lower limits are easily adjustable
- Protection class of the hoisting motor: IP 55; insulation class: F
- Overheat protection
- Self-adjusting hoisting brake with wear control
- The belt is resistant to various acids, alkalis, mineral salts, solvents, and oil products
- Hooke Available as steel version and stainless-steel version
- Electrically isolated hook block
- Control with proven strain relief, industrial design (IP65)
- Safety factor: 4:1
